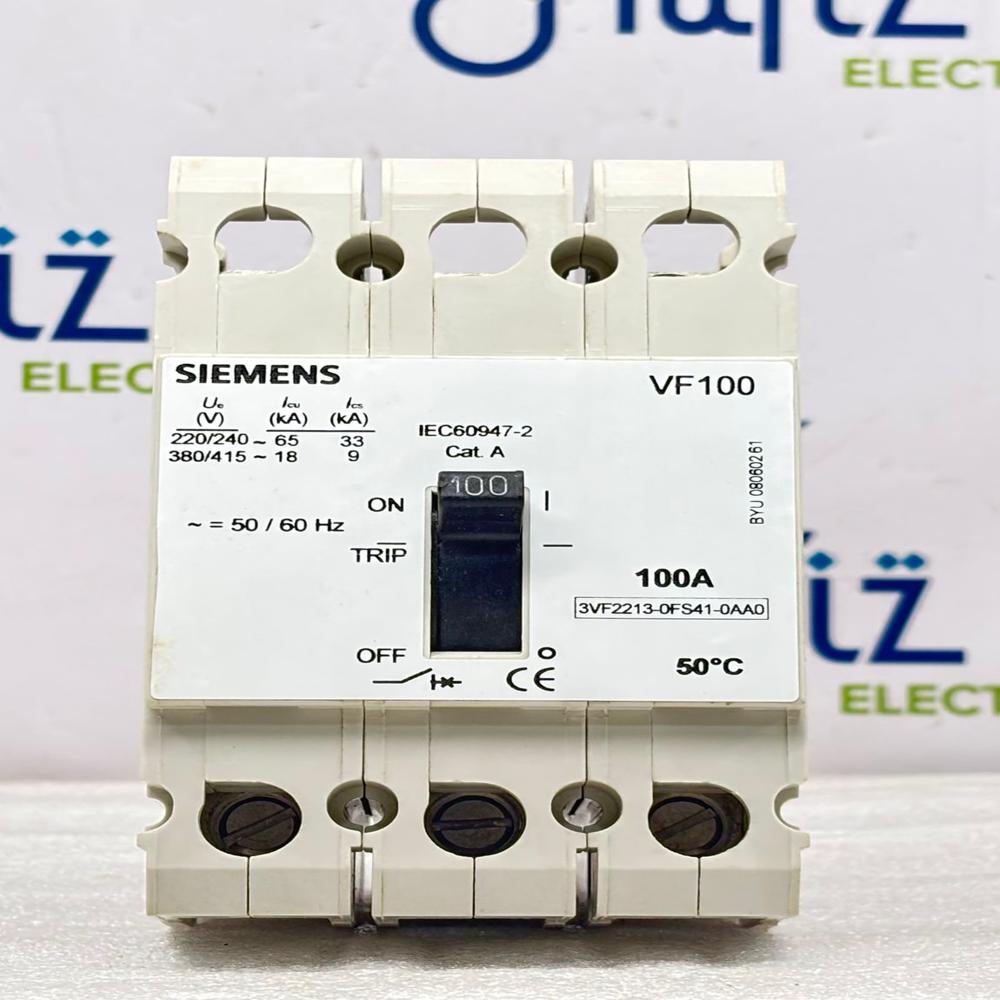

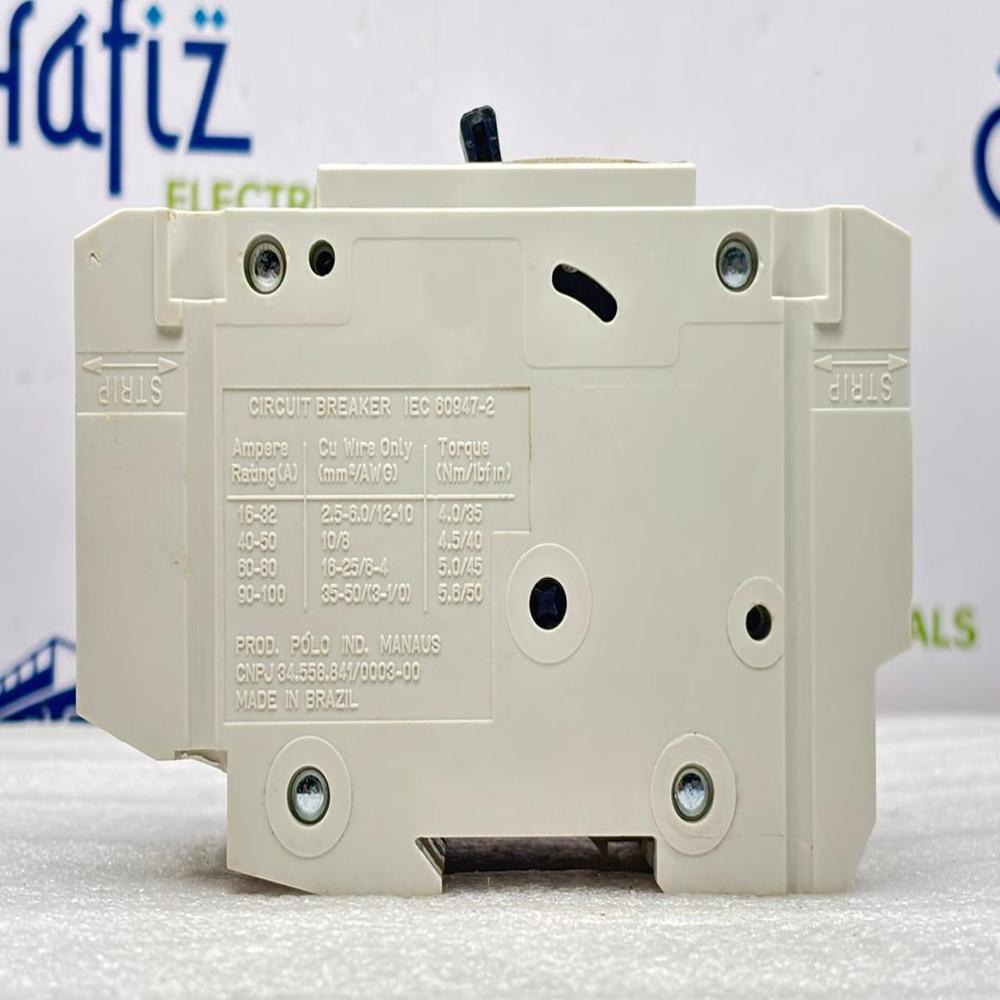

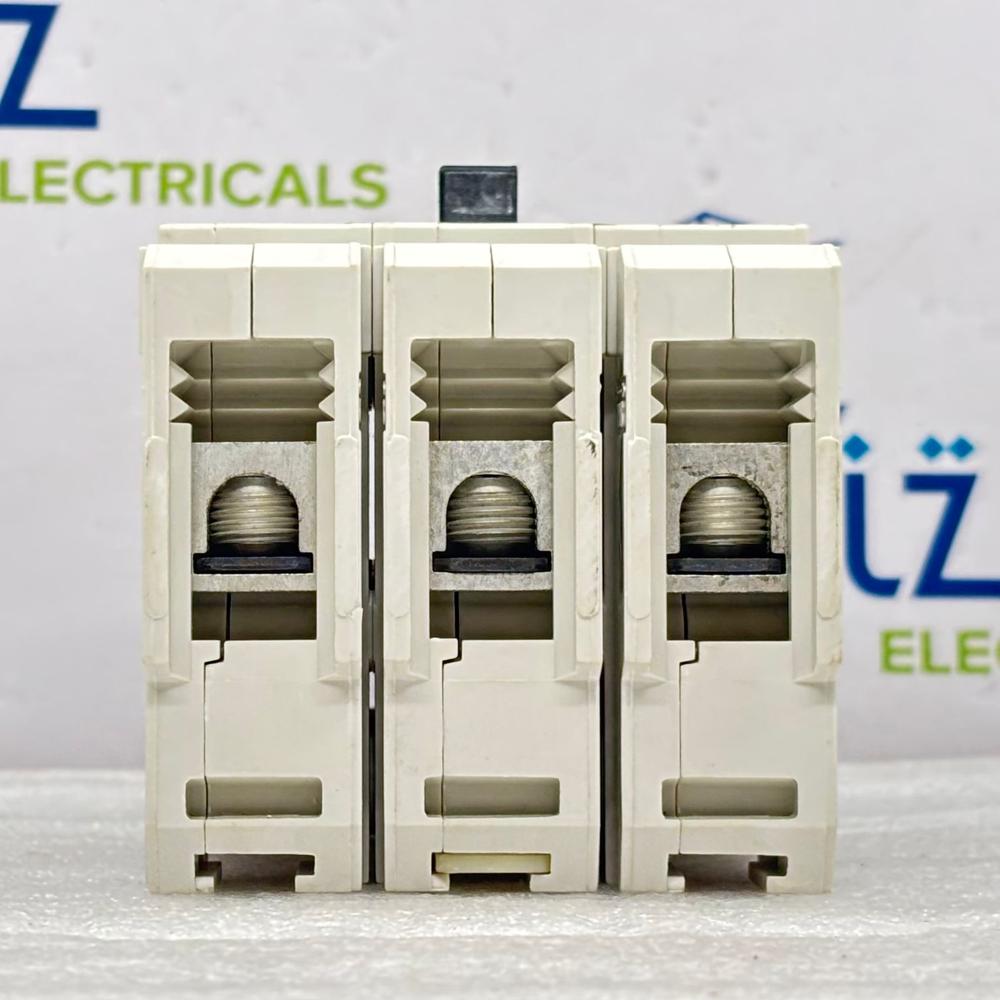

SIEMENS VF100 100A 3 POLE MCCB

Name: SIEMENS VF100 100A 3 POLE MCCB
Brand: HAFIZ ELECTRICALS
Price: 5000.0 INR
Availability: InStock

Price 5000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

SIEMENS VF100 100A 3 POLE MCCB Specification

Usage & Applications
Industrial, Commercial, Motor and feeder protection

Switch Type
Manual

Current
100A

Phase
Three Phase

Installation Type
Panel Mounting

Protection Level
Overload and short-circuit protection

Connectivity Type
Screw Terminals

IP Rating
IP20

Measuring Range
100A Rated

Frequency
50/60 Hz

Sensor Type
Electromechanical

Features
Adjustable thermal and magnetic trip; High breaking capacity; Compact design; IEC 60947-2 Compliance

Output
Switching

Pole Type
3 Pole

Mounting Type
Fixed Mounting

Product Type
Molded Case Circuit Breaker (MCCB)

Operating Temperature
-25C to +70C

Working Temperature
-25C to +70C

Input
AC

Application
Protection of electrical circuits in industrial and commercial installations

Supply Voltage
690V AC (maximum)

Accuracy
Standard IEC 60947-2 compliance

Dimension (L*W*H)
180mm x 105mm x 60mm (approx.)

Weight
1.85 kg (approx.)

Ambient Temperature Range
-25C to +70C

Series
VF100

Utilization Category
A

Rated Insulation Voltage (Ui)
690V AC

Endurance
Mechanical: 10,000 cycles; Electrical: 1,500 cycles

Tripping Mechanism
Thermal Magnetic

Breaking Capacity
36kA at 415V AC

Rated Impulse Withstand Voltage (Uimp)
8kV

Service Short Circuit Breaking Capacity (Ics)
100% of Icu

SIEMENS VF100 100A 3 POLE MCCB About

Experience brilliant circuit protection with the SIEMENS VF100 100A 3 Pole MCCB-an enviable choice among industrial and commercial professionals seeking world-class operational reliability. Engineered for instant checkout and swift order fulfillment, this popular MCCB features a high 36kA breaking capacity at 415V AC, a robust thermal magnetic tripping system, and full compliance with IEC 60947-2 standards. Its compact design, adjustable trip settings, and durable construction offer exceptional endurance and overload or short-circuit protection, making it essential for any modern electrical installation.

Commercial Excellence and Versatile Features

The SIEMENS VF100 100A 3 Pole MCCB is ideal for commercial centers and industrial sites, offering unmatched protection for motors, feeders, and main circuits. Utilized as a primary component for overload and short-circuit protection, it includes features like adjustable thermal and magnetic trips, compact size, and screw terminal connectivity. Compliance with IEC 60947-2 underscores its dependability, making it a preferred solution for demanding electrical environments across a diverse array of business applications.

Reliable Supply, Sample Availability, and Secure Shipping

We guarantee secure shipping and prompt delivery of the SIEMENS VF100 100A 3 Pole MCCB to any approved FOB port worldwide. Sample units are available as part of our proposal amount, enabling you to experience product performance before placing bulk orders. Each shipment of goods is managed with the utmost care to ensure safety during transit. Our supply ability is carefully calibrated to support both small and large-scale procurement for global industrial and commercial requirements.

FAQ's of SIEMENS VF100 100A 3 POLE MCCB:

Q: How does the SIEMENS VF100 100A MCCB ensure circuit protection in commercial applications?

A: The MCCB provides overload and short-circuit protection using its adjustable thermal and magnetic trip mechanism, ensuring consistent safety for motors, feeders, and main circuits in commercial settings.

Q: What are the primary features that contribute to the product's world-class performance?

A: Key features include its high 36kA breaking capacity at 415V AC, adjustable trip settings for precise protection, compact design, compliance with IEC 60947-2, and robust mechanical and electrical endurance.

Q: When can I expect delivery after placing an order for the SIEMENS VF100 MCCB?

A: Delivery timelines depend on your location and the selected FOB port, but we prioritize secure and prompt shipment, offering Instant Checkout options to expedite processing.

Q: Where is the ideal installation location for this MCCB?

A: The MCCB is designed for panel mounting in industrial and commercial electrical panels, offering effective three-phase protection through its fixed mounting configuration and screw terminal connectivity.

Q: What is the process for requesting a sample of the SIEMENS VF100 MCCB?

A: Simply contact our sales team with your proposal amount to arrange for a sample unit. This enables you to evaluate the product's performance prior to placing bulk orders.

Q: How does the adjustable thermal and magnetic trip benefit the user?

A: The adjustable trip settings allow users to fine-tune protection parameters, optimizing safety and device longevity while adapting to various load requirements in different operational environments.
