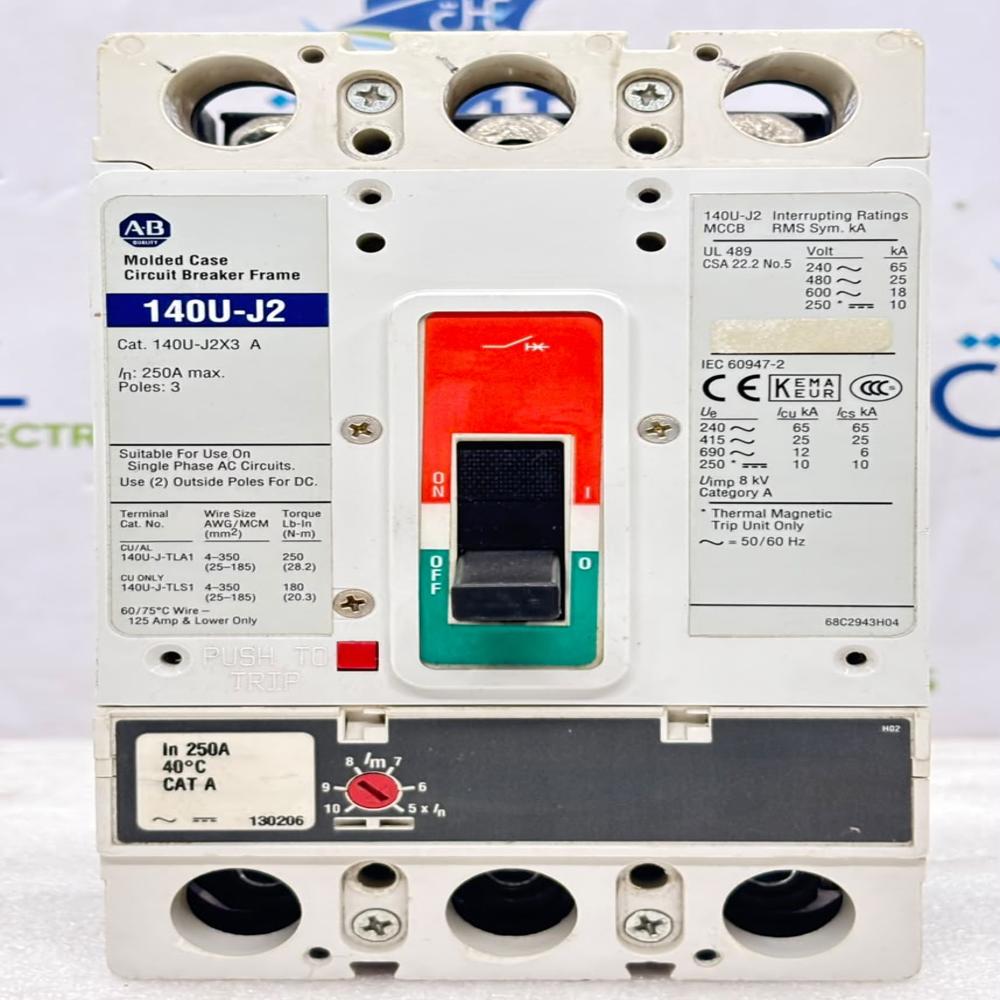

ALLEN-BRADLEY 140U-J2X3 A 250A 3POLES CIRCUIT BREAKER

Send Inquiry

Request To Call Back

ALLEN-BRADLEY 140U-J2X3 A 250A 3POLES CIRCUIT BREAKER

Name: ALLEN-BRADLEY 140U-J2X3 A 250A 3POLES CIRCUIT BREAKER
Brand: HAFIZ ELECTRICALS
Price: 15000.0 INR
Availability: InStock

Price 15000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

ALLEN-BRADLEY 140U-J2X3 A 250A 3POLES CIRCUIT BREAKER Specification

Connectivity Type
Lug/Terminal Connectors

Features
Thermal Magnetic, Adjustable Trip Setting, IEC/UL/CE Certified

Phase
3 Pole (Three Phase)

Protection Level
Category A (IEC 60947-2)

Output
No Output Signal-Protection Device

Mounting Type
Panel/Flush Mount

Display
Trip/On/Off Switch Indication

Frequency
50/60 Hz

Current
250A max.

Pole Type
3 Poles

Sensor Type
Thermal Magnetic Trip Unit

Switch Type
Manual Toggle (ON/OFF/TRIP)

Usage & Applications
Protection of AC circuits in industrial panels, suitable for single phase or DC applications with derated poles

Installation Type
Panel Mount

Product Type
Molded Case Circuit Breaker

Operating Temperature
40C (as per rated current)

Working Temperature
40C (as per In rating)

Input
AC (Single or Three Phase)

Application
Circuit Protection for Industrial/Commercial Applications

Supply Voltage
240/415/600/690 VAC supported

Trip Unit Type
Thermal Magnetic (Fixed)

Adjustment Dial
5x In (Adjustable Thermal Setting)

Impulse Withstand Voltage (Uimp)
8 kV

Thermal Magnetic Trip Only
Trip Unit Not Interchangeable

Insulation Voltage (Ui)
750V AC (as per IEC 60947-2)

Terminal Torque
140U-TLA1: 4.5-28.5 Nm (40-250 lb-in); 140U-TLS1: 2.5-20.9 Nm (22-185 lb-in)

Suitable for Use
Single Phase AC Circuits, Outside Poles for DC

Category
A (as per IEC60947-2)

Interrupting Ratings (MCCB RMS Sym.)
240V-65kA, 415V-25kA, 600V-18kA, 690V-12kA, 250V DC-10kA

ALLEN-BRADLEY 140U-J2X3 A 250A 3POLES CIRCUIT BREAKER About

Order today the ALLEN-BRADLEY 140U-J2X3 A 250A 3-Poles Circuit Breaker-an excellent choice for superior industrial circuit protection at an unbeatable price. This best-seller delivers premier performance, boasting interrupting ratings up to 65kA at 240V and robust protection for multiple voltages as per IEC 60947-2 Category A. Featuring a state-of-the-art thermal magnetic trip unit, adjustable thermal settings, and panel/flush mount installation, it is a paragon of reliability and safety for demanding commercial or industrial environments. Don't miss this must-have protection device-available from trusted exporters, suppliers, and traders.

Optimized Protection for Demanding Environments

ALLEN-BRADLEY 140U-J2X3 A 250A 3-poled Circuit Breaker is the premier solution for safeguarding industrial and commercial AC circuits. Specially engineered for three-phase and select single-phase or DC applications, it offers advanced thermal magnetic trip technology with adjustable settings for tailored protection. Ideal for panel and flush mounting, it ensures reliable and consistent operation in challenging environments where maximum safety and practicality are essential.

Availability, Certifications, and Market Value Offer

Sample availability for the ALLEN-BRADLEY 140U-J2X3 A demonstrates our commitment to customer assurance. With rapid arrival and robust supply ability, our inventory meets diverse project needs efficiently. This product comes fully IEC/UL/CE certified, ensuring global market compliance and elevated market value. When you order today, you receive premier quality, swift delivery, and a trusted solution that supports your critical circuit protection applications.

FAQ's of ALLEN-BRADLEY 140U-J2X3 A 250A 3POLES CIRCUIT BREAKER:

Q: How does the ALLEN-BRADLEY 140U-J2X3 A 250A Circuit Breaker provide superior circuit protection?

A: It utilizes a thermal magnetic trip unit with adjustable settings, offering effective protection against overloads and short circuits according to IEC 60947-2 standards.

Q: What is the installation process for this circuit breaker?

A: The device is designed for easy panel or flush mounting and connects using lug or terminal connectors for streamlined integration into industrial panels.

Q: Where can the ALLEN-BRADLEY 140U-J2X3 A be applied?

A: It is well-suited for industrial and commercial AC system panels, with select suitability for single-phase or DC systems when using derated poles.

Q: When should I consider using this circuit breaker in my applications?

A: This breaker is ideal for environments requiring dependable protection for circuits up to 250A, especially where certification and reliable operation at various supply voltages are essential.

Q: What certifications does this product have?

A: The circuit breaker carries IEC, UL, and CE certifications, meeting global safety and performance requirements.

Q: What special features distinguish this product from others?

A: Key features include a fixed thermal magnetic trip unit, adjustable thermal settings, three-pole switching, clear on/off/trip display indicators, and robust short-circuit interrupting performance at multiple voltage levels.
