ELECTRIC PANEL BOARD

• Application
• Industrial Automation, Motor Control

• Color
• Grey

• Connection Type
• Hardwired / Terminal block

• Connector Type
• Screw Type Terminal

• Dimension (L*W*H)
• Approx. 650 x 500 x 220 mm

• Efficiency
• >=96%

• Energy Consumption
• Depends on Load (Optimized)

• Feature
• High reliability, Energy saving, Programmable Settings, Digital Display

• Frequency (MHz)
• 50/60 Hz

• Humidity %
• <95% RH Non-Condensing

• IP Rating
• IP54

• Input Voltage
• 380-480V AC

• Insulation Material
• PVC/FRLS for wiring

• Material
• Mild Steel (MS)

• Mounting Type
• Wall/Panel Mounting

• No Of Poles
• 3

• Operating Temperature
• -10C to +55C

• Output Type
• 3 Phase AC Output

• Overheating Protection
• Other, Yes, with Thermal Overload Relay

• Phase
• Three Phase

• Power Factor
• >0.95

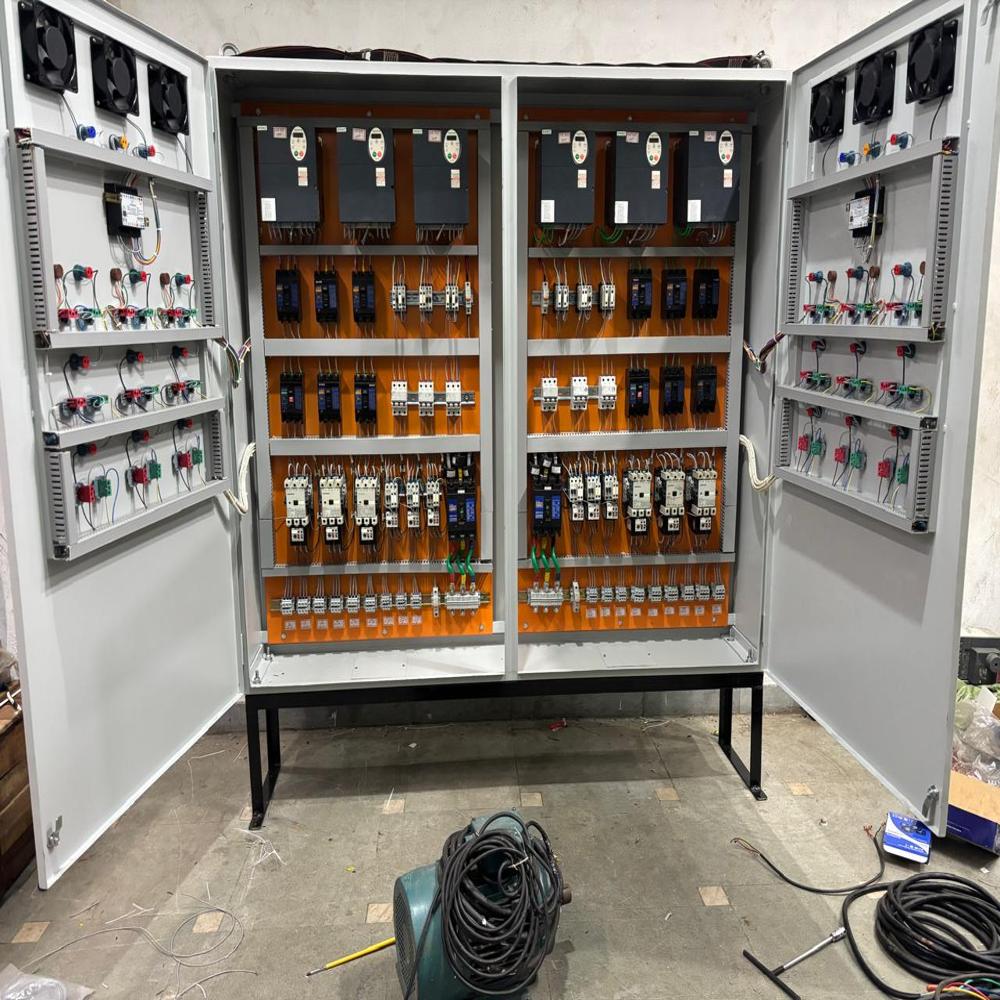

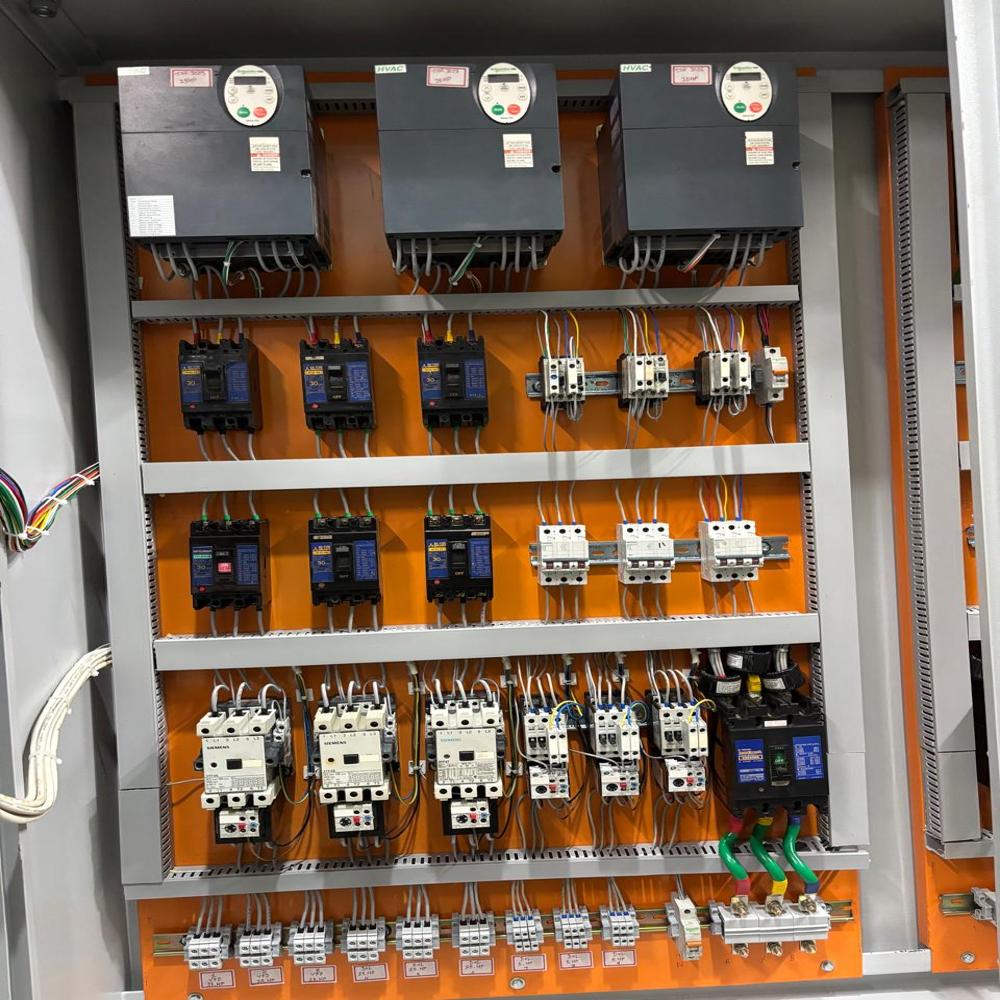

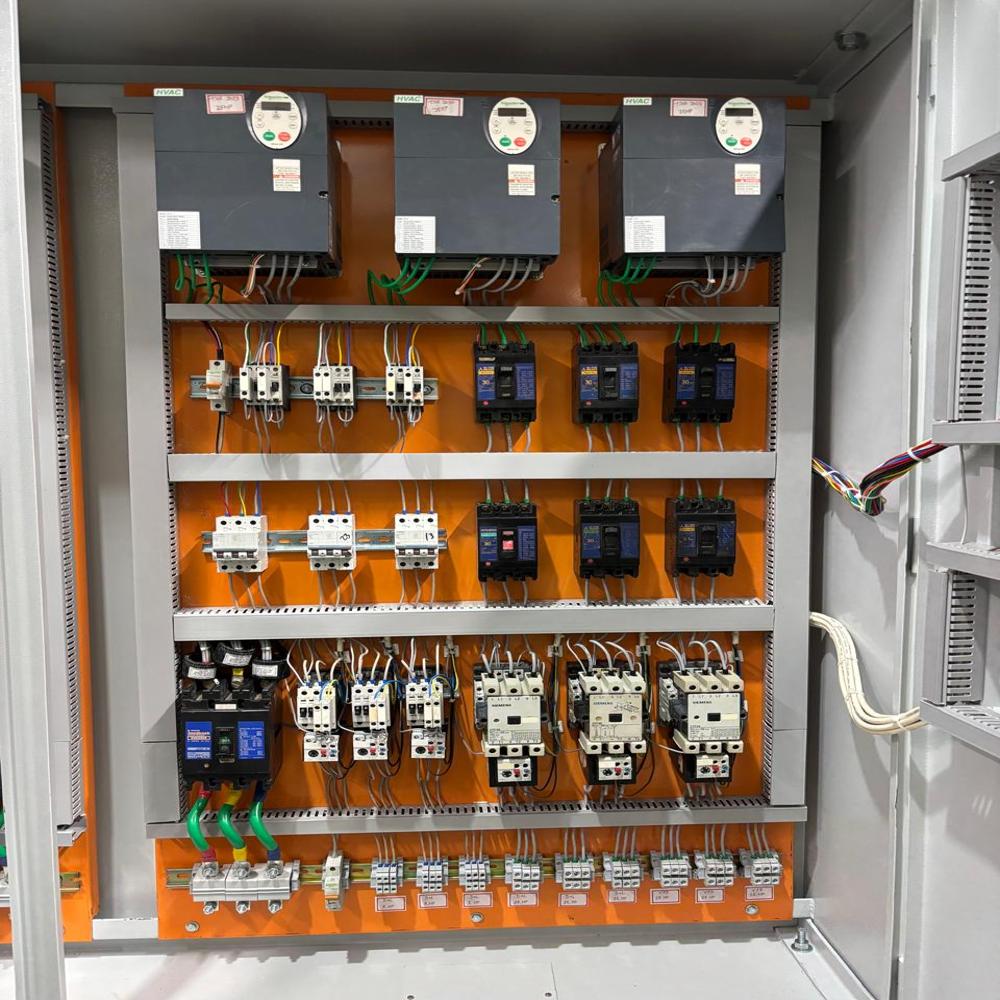

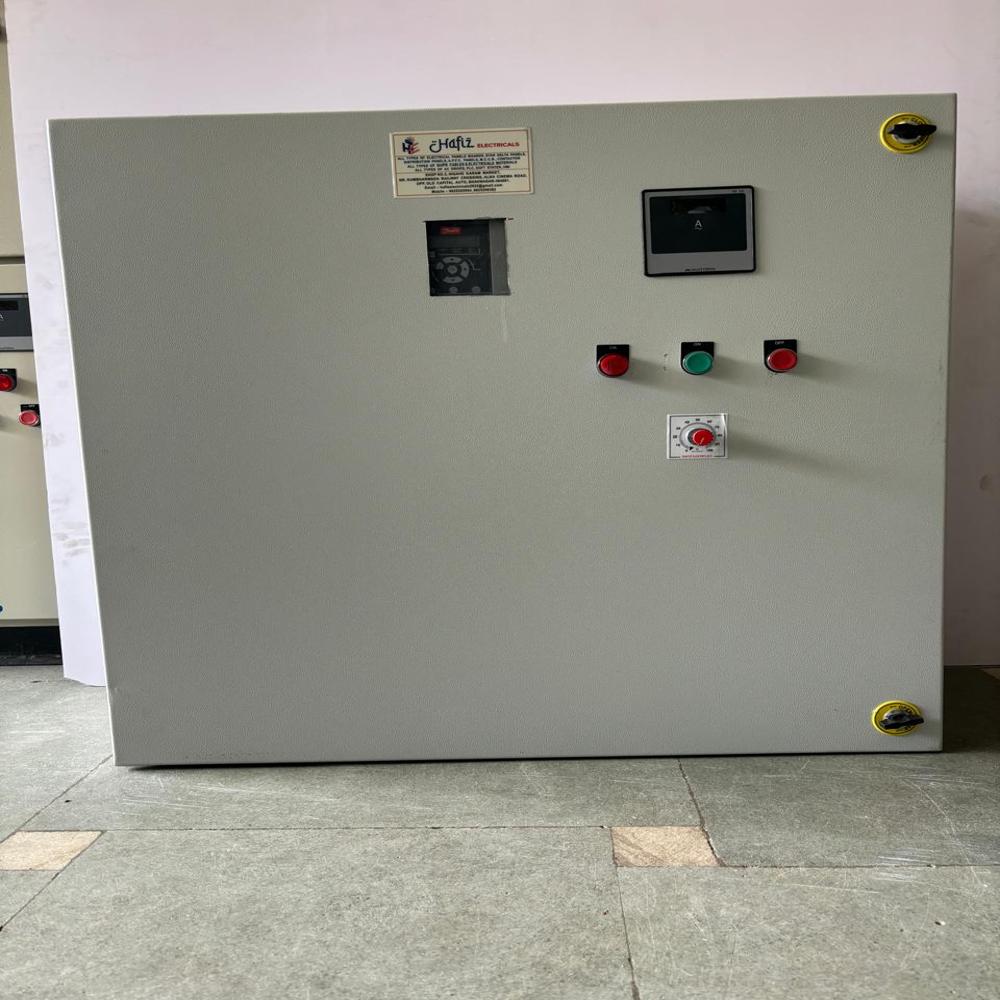

• Product Type
• AC Drives Panel Board

• Protection Level
• Other, Full Protection - Short Circuit, Overload, Overvoltage

• Rated Voltage
• 415 V AC

• Shape
• Rectangular

• Size
• Medium (Customizable on Request)

• Surface Finish
• Powder Coated

• Weight
• Approx. 40 kg

• Application
• Industrial Motor Control, Pump/Fan Applications

• Color
• Grey with Blue Tint (As per Image)

• Connection Type
• Cable Gland with Terminal Connectors

• Connector Type
• Heavy Duty Terminal Block

• Dimension (L*W*H)
• Approx. 1800 mm x 800 mm x 400 mm

• Efficiency
• Up to 98%

• Energy Consumption
• Highly Energy Efficient

• Feature
• Integrated VFD Bank, Digital Display, Safety Interlocks

• Frequency (MHz)
• 50/60 Hz

• Humidity %
• 0 - 95% (non-condensing)

• IP Rating
• IP54

• Input Voltage
• 380-480 VAC, 3 Phase

• Insulation Material
• PVC/Heat Resistant Insulation

• Material
• Mild Steel Sheet (Powder Coated)

• Mounting Type
• Floor Mounted

• No Of Poles
• 3 Poles

• Operating Temperature
• -10C to +50C

• Output Type
• Variable AC Output

• Overheating Protection
• Other, Yes, In-built Thermal Protection

• Phase
• Three Phase

• Power Factor
• 0.98

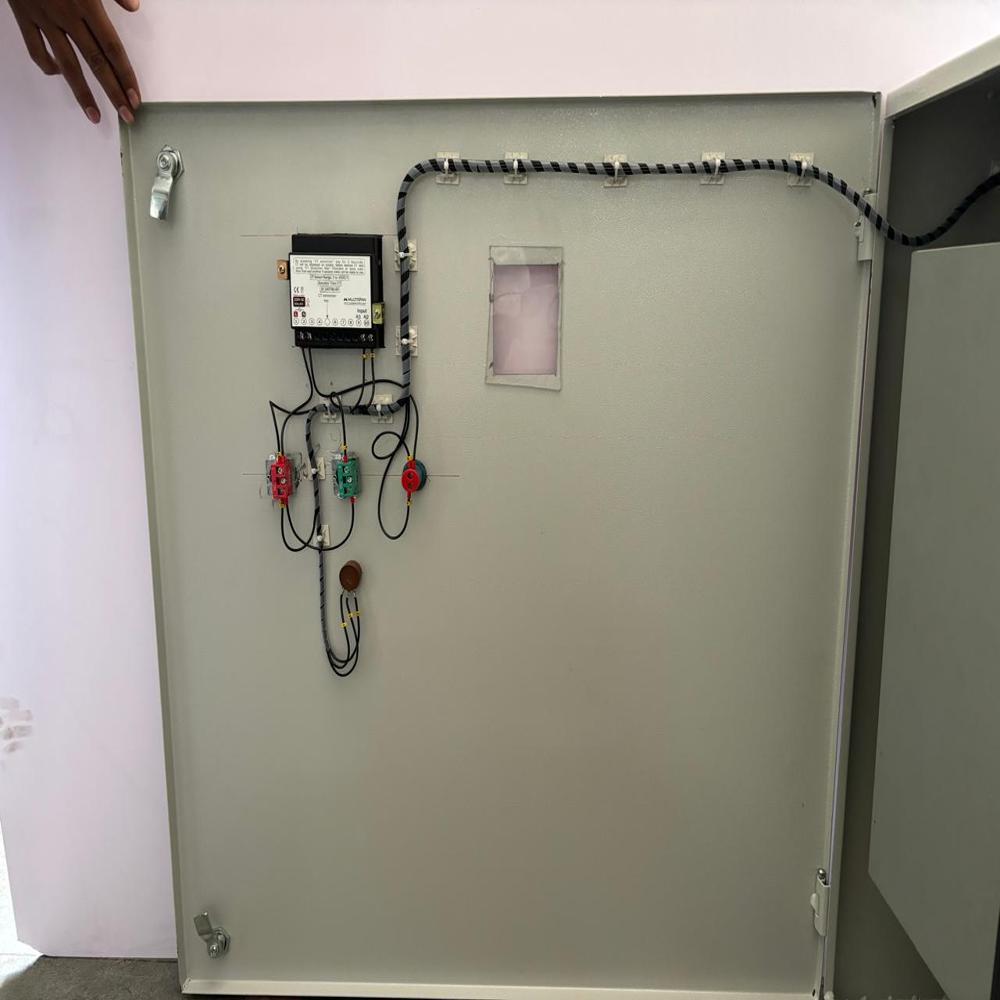

• Product Type
• AC Drives Panel Board

• Protection Level
• Other, Overload, Short Circuit, Over Voltage, Under Voltage

• Rated Voltage
• 380-480 VAC

• Shape
• Rectangular Cabinet

• Size
• Standard Industrial Panel Size

• Surface Finish
• Powder Coated

• Weight
• Approx. 145 kg

• Application
• Industrial Power Distribution

• Color
• RAL 7035 (Light Grey)

• Connection Type
• Busbar/Terminal

• Connector Type
• Cable Lug / Busbar

• Dimension (L*W*H)
• 1200 x 800 x 300 mm

• Efficiency
• >98%

• Energy Consumption
• Low (Panel Only)

• Feature
• Modular, Pre-wired, Expandable

• Frequency (MHz)
• 50/60 Hz

• Humidity %
• Up to 95% RH (Non-Condensing)

• IP Rating
• IP 42

• Input Voltage
• 415V AC

• Insulation Material
• PVC/FRLS

• Material
• High Grade Powder Coated CRCA Steel

• Mounting Type
• Floor/Wall Mounted

• No Of Poles
• 3 Pole + Neutral (TPN)

• Operating Temperature
• -5C to +45C

• Output Type
• Three Phase Output

• Overheating Protection
• Other, Yes (Thermal Protection in MCCB)

• Phase
• Three Phase

• Power Factor
• 1 (Panel) / Load Dependent

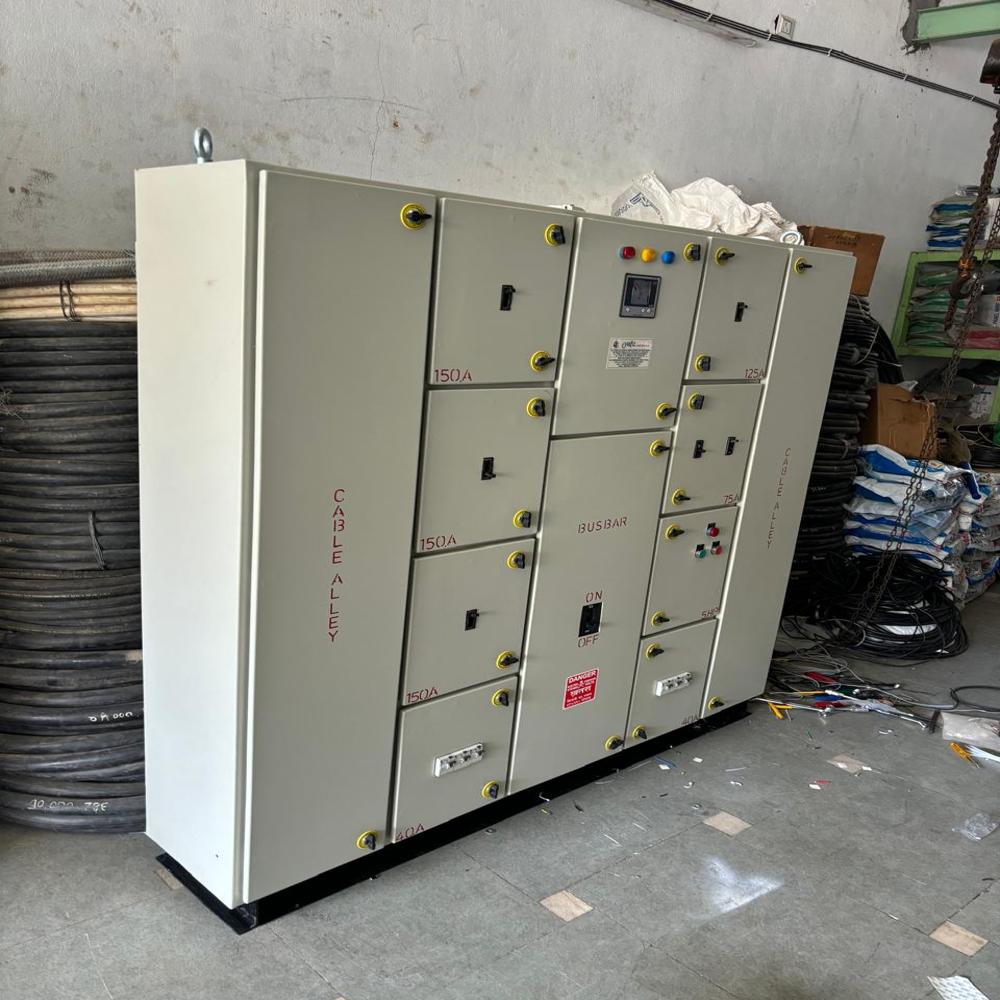

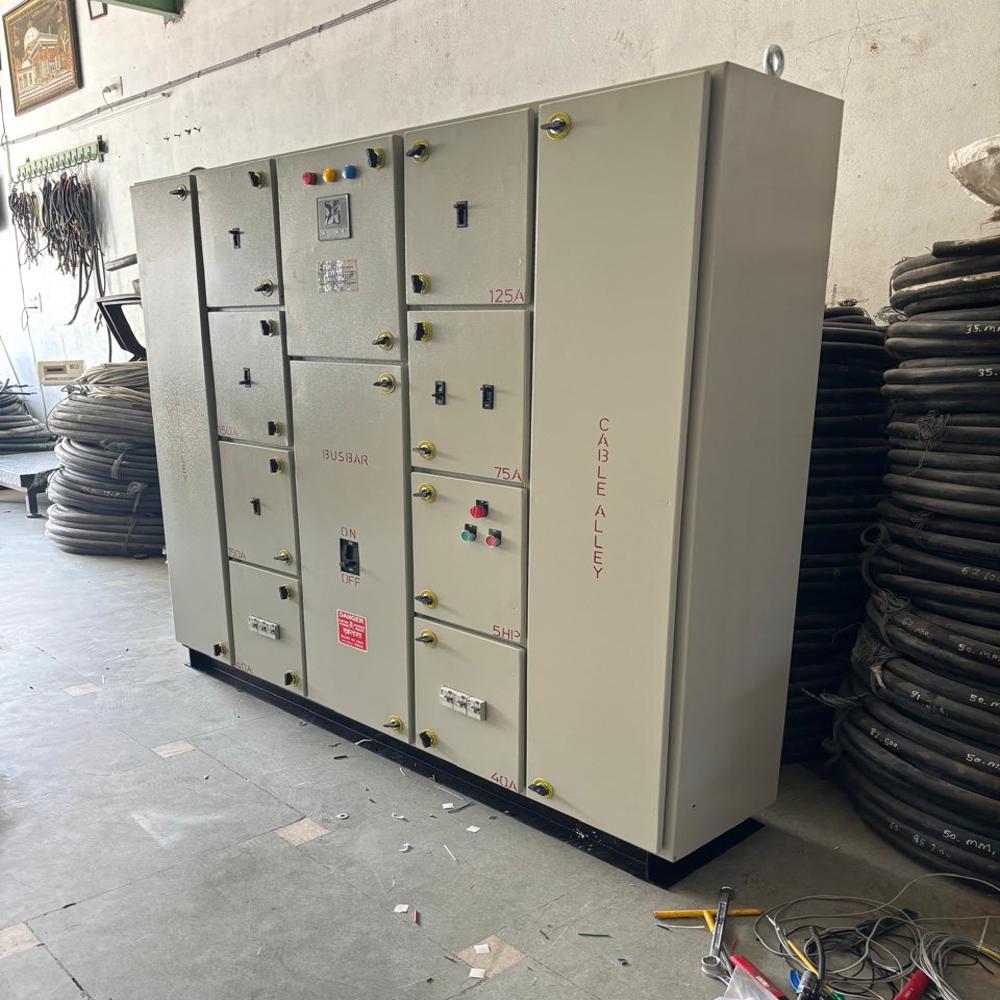

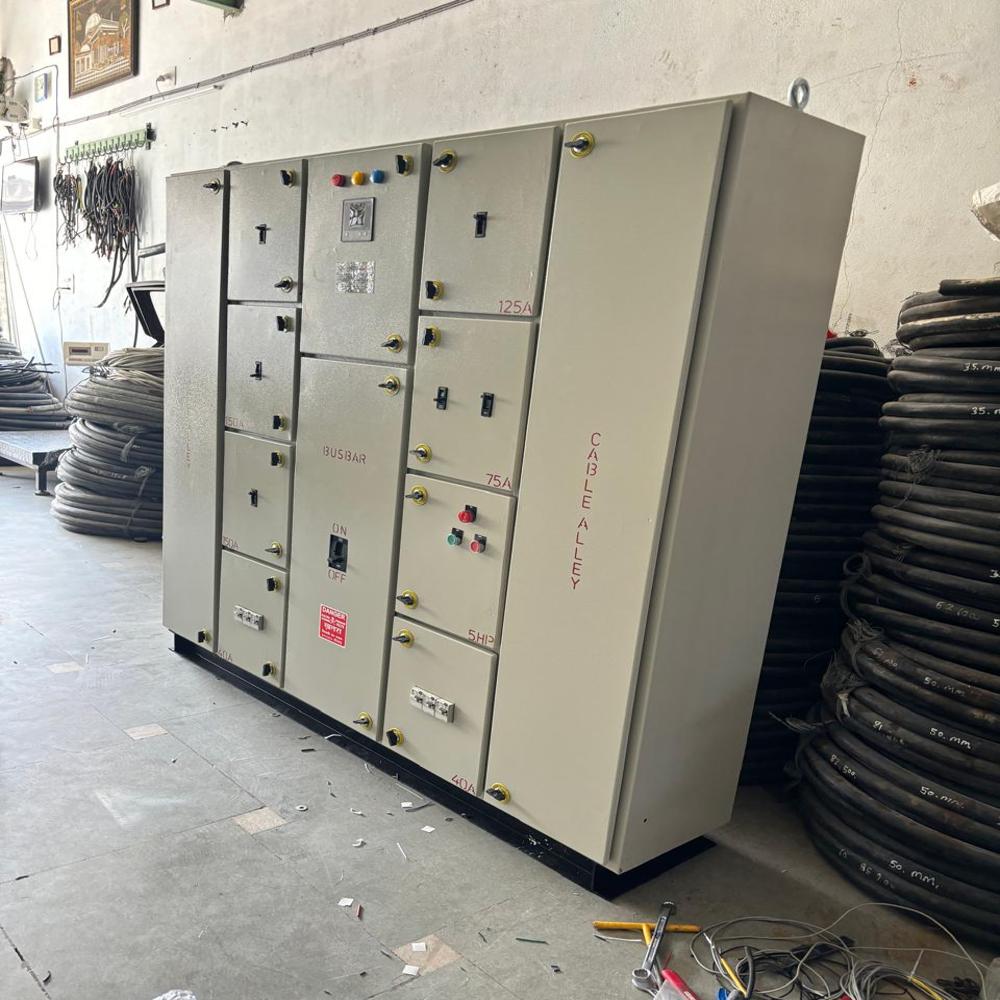

• Product Type
• MCCB Panel Board

• Protection Level
• Other, Overload, Short Circuit Protection

• Rated Voltage
• 415V AC

• Shape
• Rectangular

• Size
• Standard/Customized

• Surface Finish
• Powder Coated

• Weight
• Approx. 45 kg

• Application
• Commercial/Residential/Industrial Electrical Distribution

• Color
• Siemens Light Grey / Powder Coated

• Connection Type
• Busbar / Terminal

• Connector Type
• Screw/Clamp Type Terminal

• Dimension (L*W*H)
• 500mm x 800mm x 200mm (customizable)

• Efficiency
• >98%

• Energy Consumption
• Low (depends on connected load)

• Feature
• Flame Proof, Corrosion Resistant, Durable, Modular Design

• Frequency (MHz)
• 50 Hz

• Humidity %
• Up to 95% RH (non-condensing)

• IP Rating
• IP42 / IP54 (optionally up to IP65)

• Input Voltage
• 415V AC

• Insulation Material
• PVC/FR Insulation

• Material
• CRCA Steel

• Mounting Type
• Wall Mounted

• No Of Poles
• 3 Pole (TPN)

• Operating Temperature
• -10C to 55C

• Output Type
• Multiple Circuit Outputs

• Overheating Protection
• Other, Provided via Breakers

• Phase
• Three Phase

• Power Factor
• >0.95

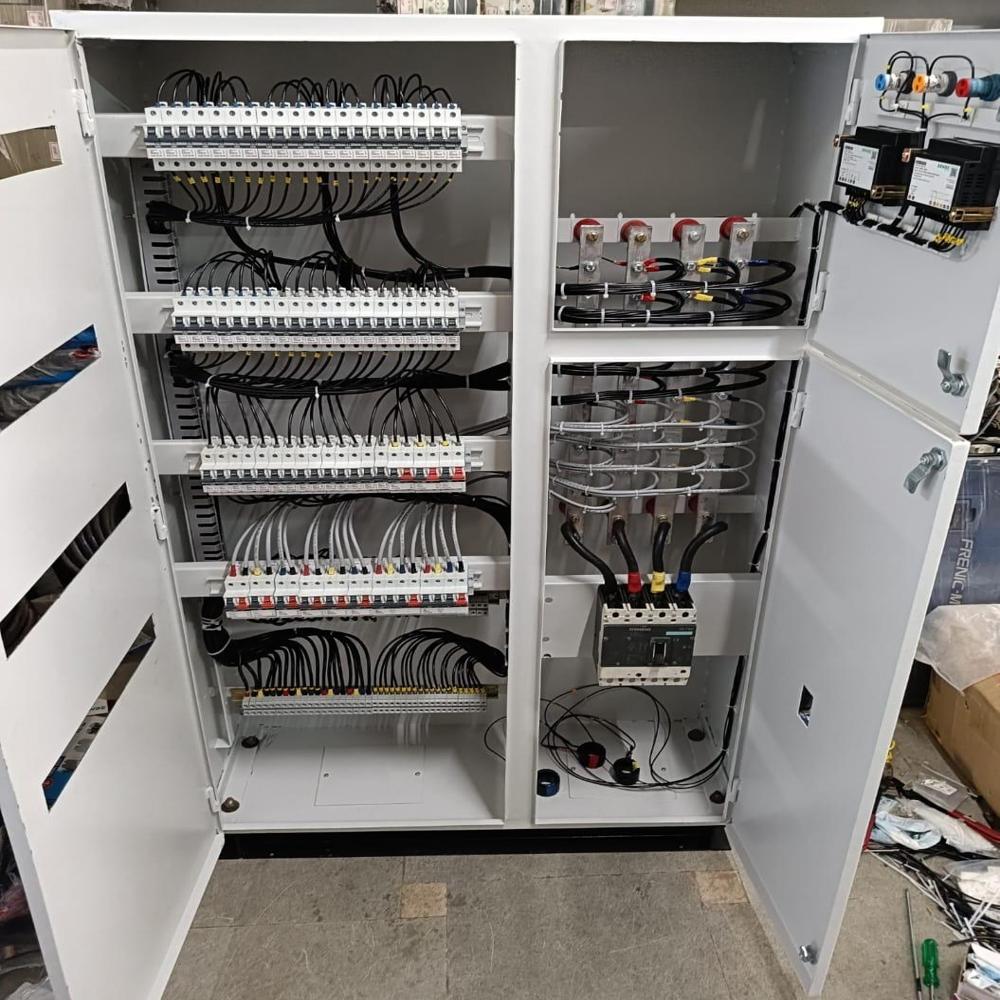

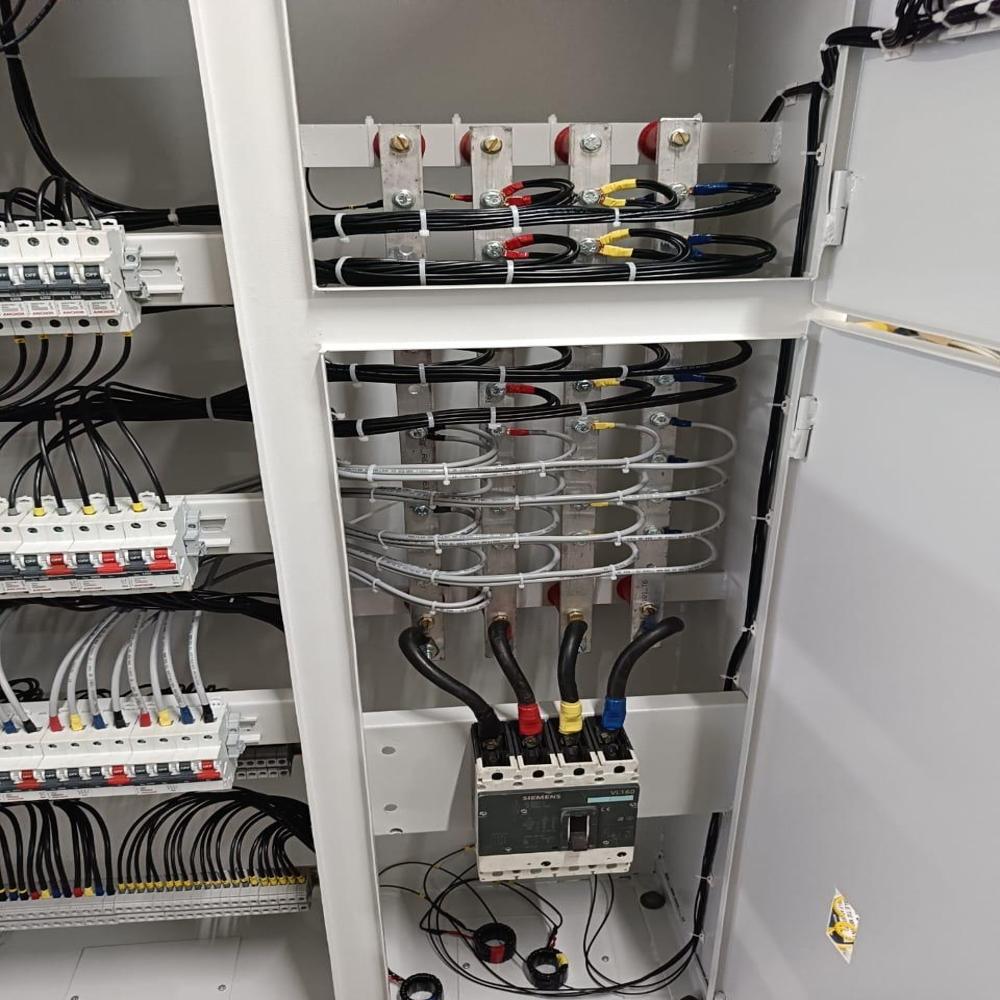

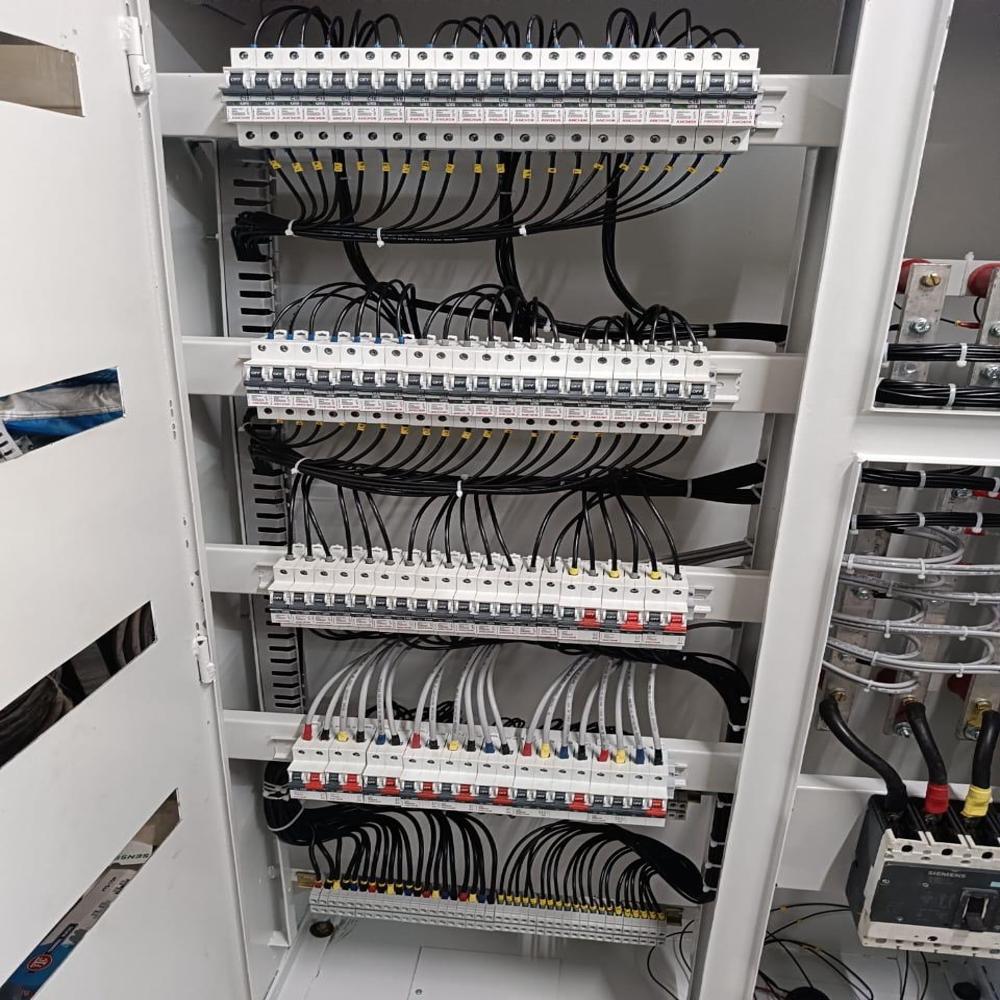

• Product Type
• Lighting Panel

• Protection Level
• Other, Circuit Breaker, MCB/ELCB/RCCB

• Rated Voltage
• 415V AC

• Shape
• Rectangular

• Size
• Standard/Customized

• Surface Finish
• Powder Coated

• Weight
• 28 kg (approx.)
