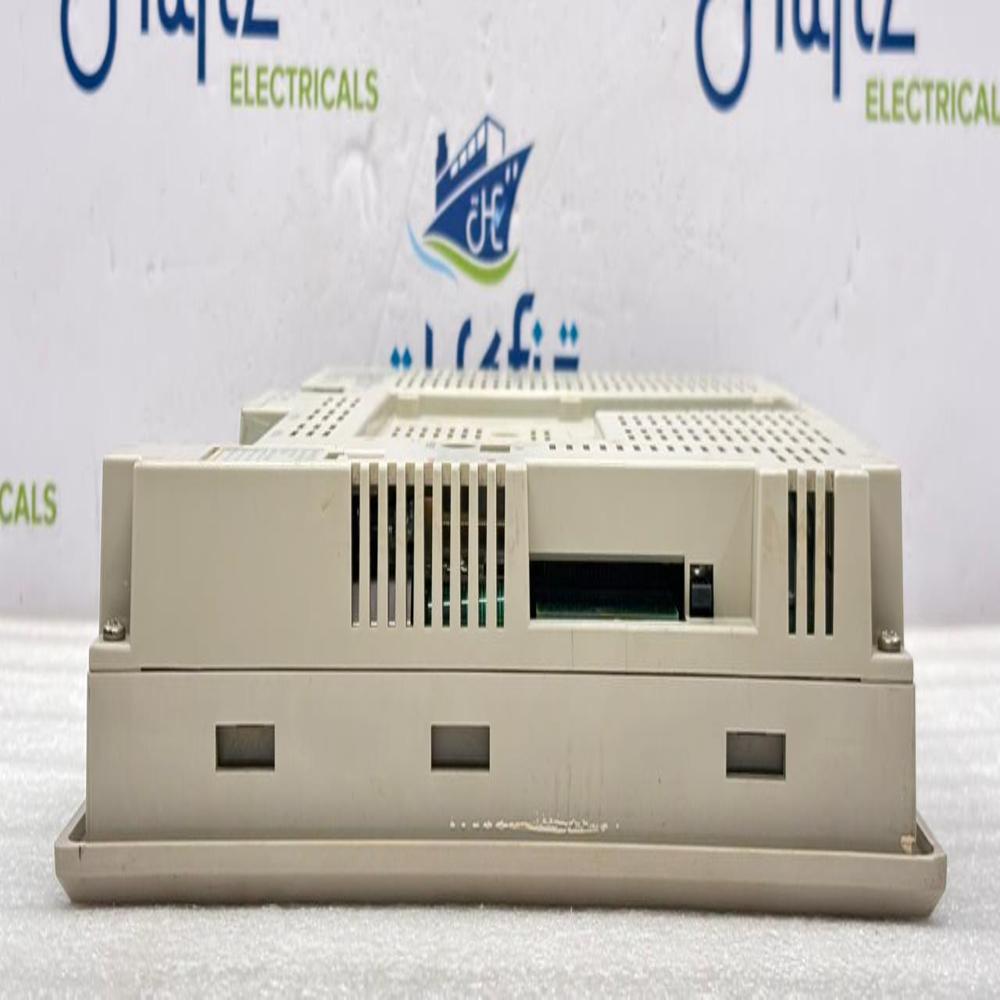

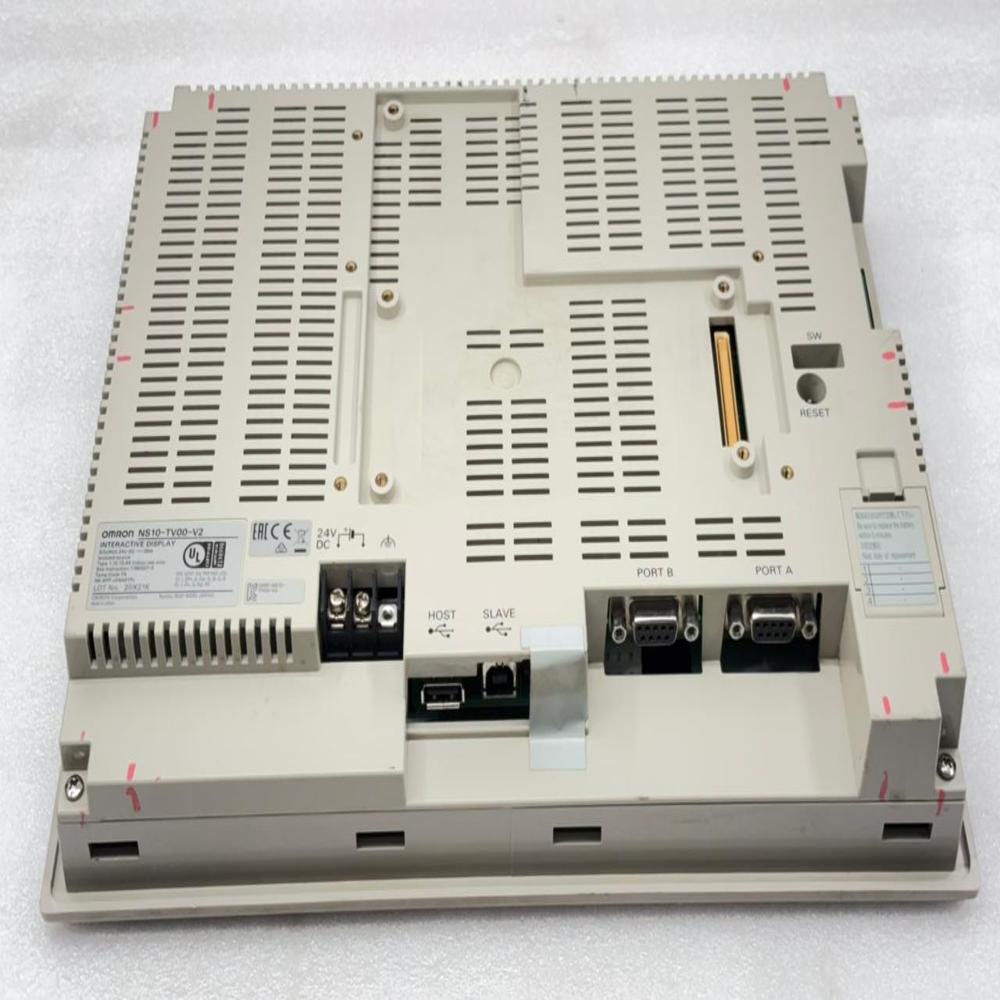

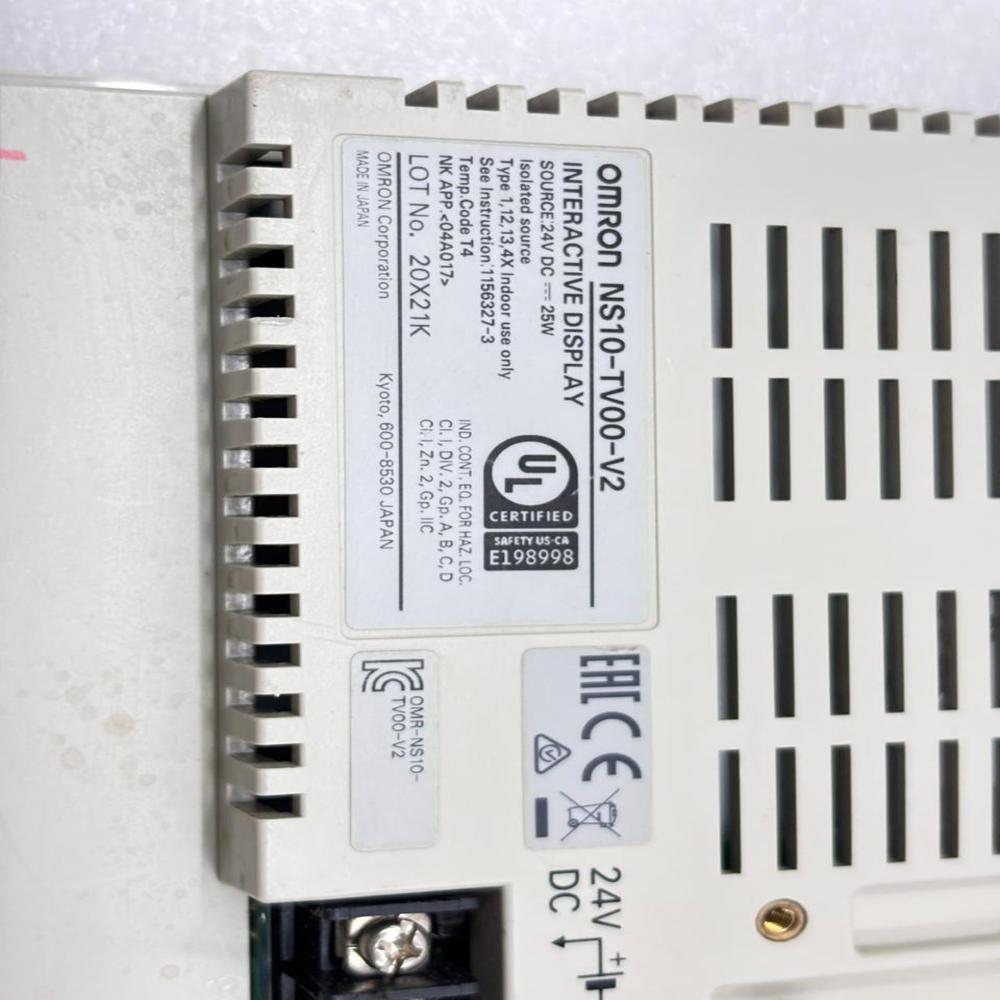

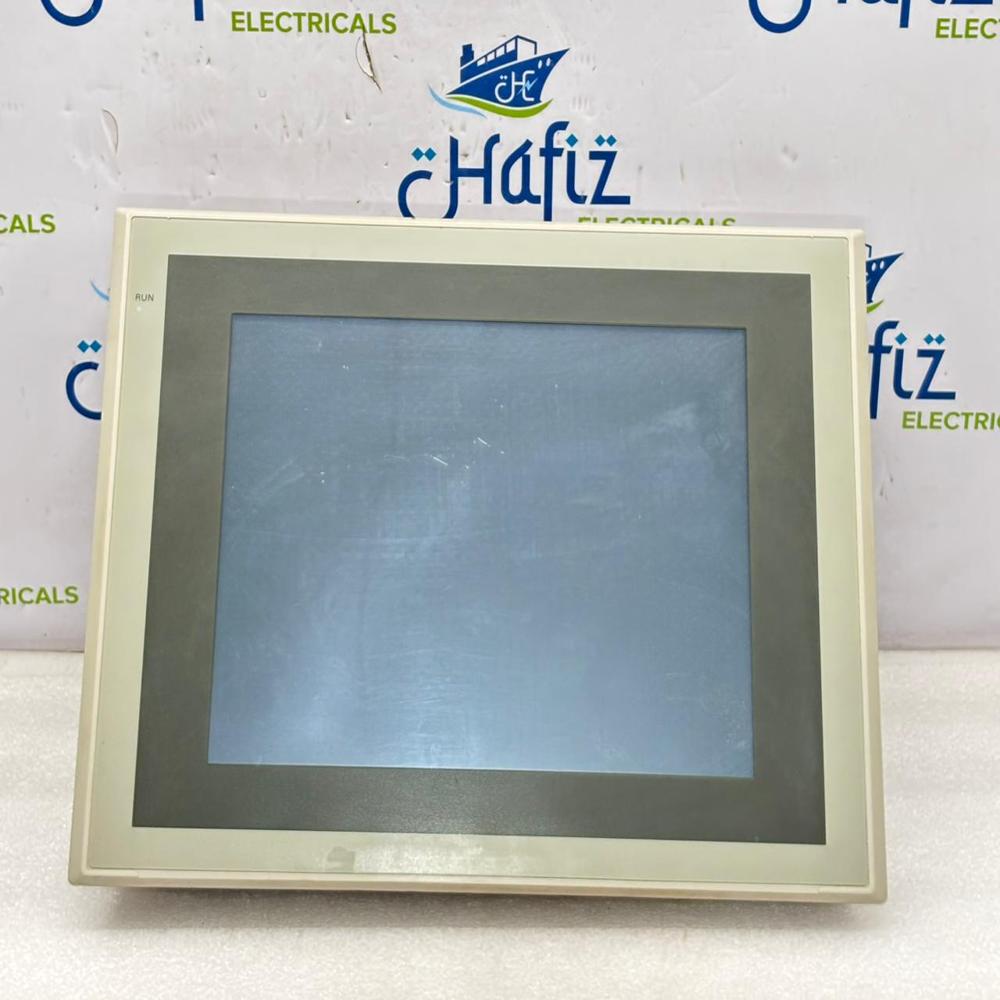

OMRON NS10-TV00-V2 INTERACTIVE TOUCH SCREEN PANEL

Send Inquiry

Request To Call Back

OMRON NS10-TV00-V2 INTERACTIVE TOUCH SCREEN PANEL

Name: OMRON NS10-TV00-V2 INTERACTIVE TOUCH SCREEN PANEL
Brand: HAFIZ ELECTRICALS
Price: 30000.0 INR
Availability: InStock

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

OMRON NS10-TV00-V2 INTERACTIVE TOUCH SCREEN PANEL Specification

Mounting Type
Panel Mount

Features
10.4-inch color display, multiple communication ports, programmable, robust construction, high visibility

Switch Type
Touch Switch

Connectivity Type
Ethernet, Serial

Installation Type
Panel Mount

Frequency
50/60Hz

Phase
Single Phase

Protection Level
Front panel: IP65

Current
0.75A (typical)

Sensor Type
Analog Resistive Touch

Display
10.4-inch TFT Color LCD

Usage & Applications
Machine control, process automation, monitoring

Output
RS-232C, RS-422A/485, Ethernet

IP Rating
IP65 (front only)

Product Type
Interactive Touch Screen Panel

Operating Temperature
0C to 50C

Working Temperature
0C to 50C

Input
Analog Touch Input

Application
Industrial Automation HMI

Supply Voltage
24V DC (20.4 to 27.6 V)

Accuracy
Touch position error within 1% of panel size

Dimension (L*W*H)
Approximately 314mm x 239mm x 56mm

Weight
Approx. 2.5 kg

Backlight Type
CCFL (replaceable)

Storage Temperature
-20C to 60C

Ambient Humidity
10% to 90% RH (non-condensing)

Model Number
NS10-TV00-V2

Touch Screen Life
1 million operations minimum

Communication Ports
Ethernet, 2x COM ports (RS232/RS485), USB

Vibration Resistance
10 to 57 Hz, 0.075 mm amplitude; 57 to 150 Hz, acceleration 9.8 m/s2

Shock Resistance
147 m/s2, 3 times each in X, Y, Z directions

Panel Cutout Size
301mm x 226mm

Frame Material
Aluminum Die Cast (front), ABS resin (rear)

Memory
128 MB (system), Flash memory supported

Color Support
256 colors

Display Resolution
640 x 480 pixels

Backlight Life
50,000 hours minimum

OMRON NS10-TV00-V2 INTERACTIVE TOUCH SCREEN PANEL Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

OMRON NS10-TV00-V2 INTERACTIVE TOUCH SCREEN PANEL About

Discover the redoubtable OMRON NS10-TV00-V2 Interactive Touch Screen Panel-your top-tier choice for industrial automation HMI. Featuring a sizzling 10.4-inch TFT Color LCD with superb 640x480-pixel resolution, this panel ensures high visibility and precision. The robust aluminum die-cast front delivers IP65 protection, while the cost-effective CCFL backlight guarantees 50,000 hours of luminous display. Benefit from versatile connectivity-Ethernet, dual COM ports, and USB. With 1 million minimum touch operations, advanced memory options, and outstanding shock and vibration resistance, Shop Now for reliability built for the harshest environments!

Versatile Usage, Durability, and Application

The OMRON NS10-TV00-V2 Interactive Touch Screen Panel is engineered for demanding industrial environments and machine control surfaces. With robust construction, high-visibility 10.4-inch display, and IP65-rated front, it excels in process automation, monitoring, and operational control. Its touch panel withstands up to 1 million operations and the sturdy aluminum housing makes it suitable for continuous use in diverse industrial applications like factory automation and process control.

Payment Terms, Logistics, and Certification Information

Charges for the OMRON NS10-TV00-V2 are determined based on proposal amount and order requirements. Standard payment terms are negotiable to suit client needs, with FOB Port options typically at major international terminals. Efficient transportation ensures timely delivery, safeguarding your investment. This touch screen panel is backed by certifications ensuring industrial quality standards-reliability is always prioritized with every transaction.

FAQ's of OMRON NS10-TV00-V2 INTERACTIVE TOUCH SCREEN PANEL:

Q: How is the OMRON NS10-TV00-V2 touch screen panel installed?

A: The panel is designed for easy panel mount installation. With a specified cutout size of 301mm x 226mm, you can securely fit it onto machine control surfaces as required in industrial settings.

Q: What are the main features that make the NS10-TV00-V2 suitable for industrial automation?

A: It features a 10.4-inch TFT color LCD, robust build with IP65 front protection, versatile connectivity (Ethernet, dual COM, and USB), a replaceable CCFL backlight, and high input accuracy, making it ideal for demanding automation needs.

Q: When does the backlight require replacement?

A: The replaceable CCFL backlight is rated for a minimum of 50,000 operating hours. It should be replaced when brightness is noticeably diminished or after significant use nearing its rated lifespan.

Q: Where can the OMRON NS10-TV00-V2 be effectively used?

A: This touch screen panel shines on factory floors, process automation controls, machine interface panels, and industrial monitoring areas-anywhere robust and reliable HMI is critical.

Q: What is the benefit of its analog resistive touch technology?

A: Analog resistive touch ensures precise inputs and high durability, tolerating up to 1 million operations. It also provides accurate response even when gloves are worn-ideal for industrial workplaces.

Q: How does the NS10-TV00-V2 ensure operational resilience in harsh environments?

A: Its solid aluminum die-cast front, IP65 front rating, wide operating and storage temperature range, as well as superb shock and vibration resistance, deliver reliable performance in tough industrial settings.
