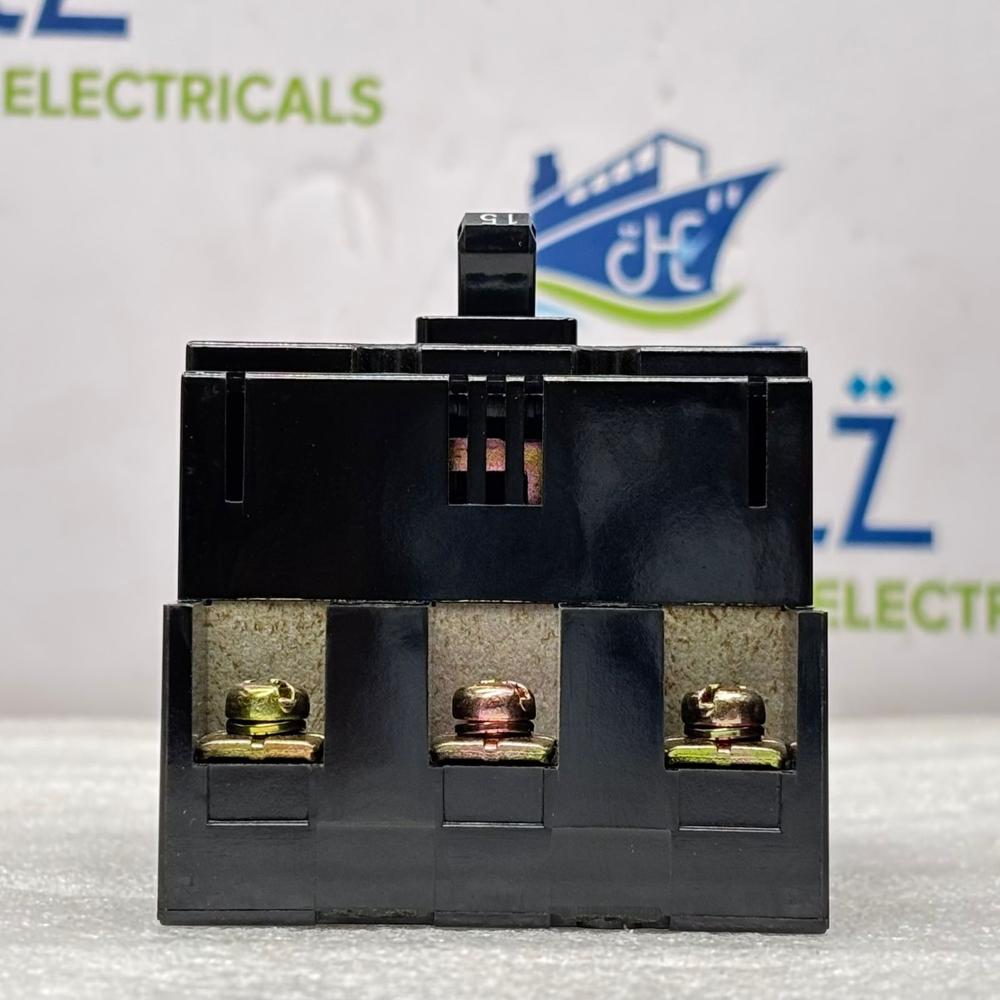

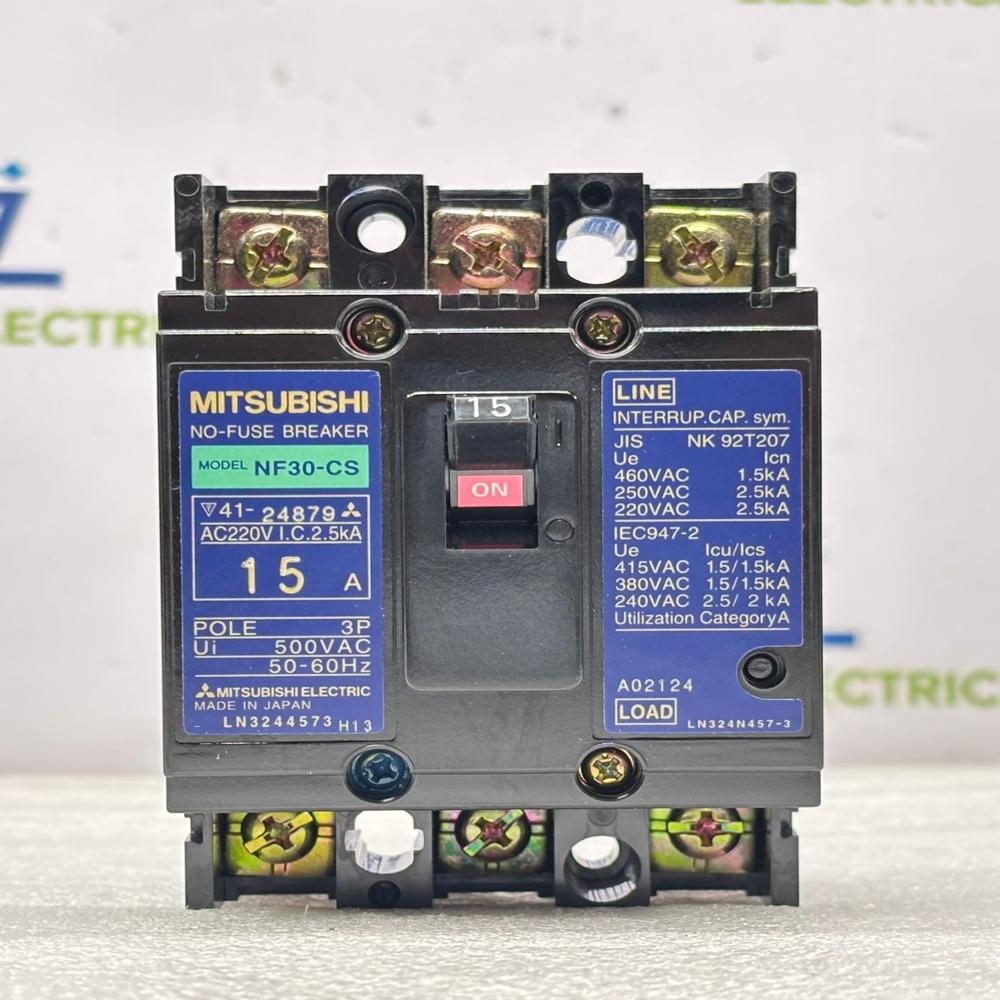

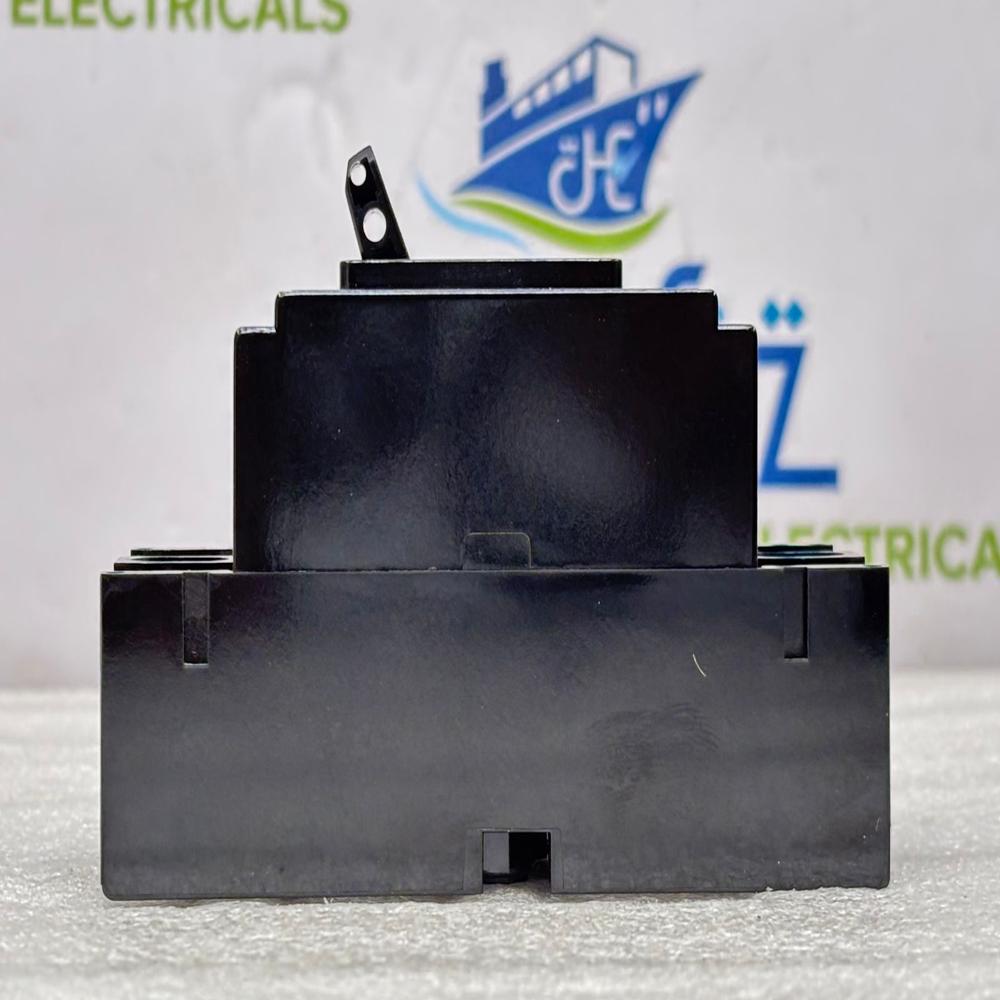

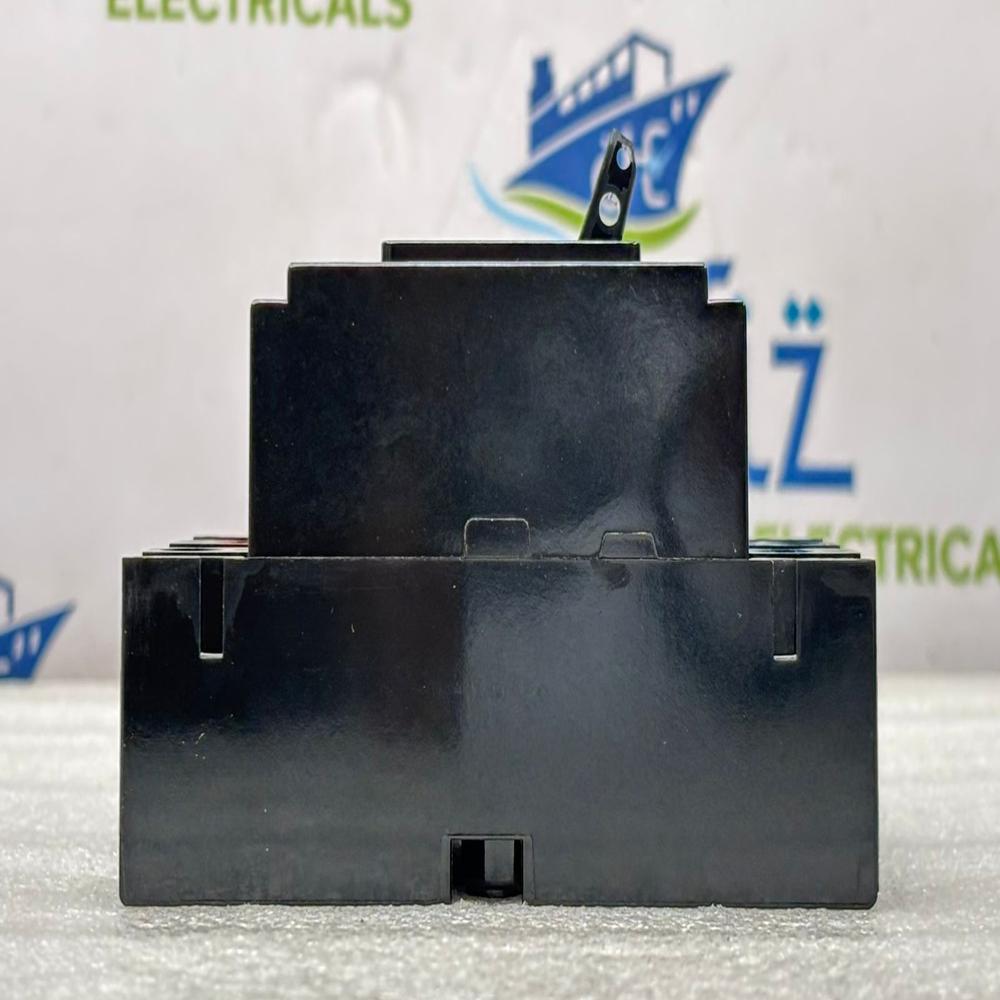

MITSUBISHI NF30-CS 15A 3 POLE MCCB

Name: MITSUBISHI NF30-CS 15A 3 POLE MCCB
Brand: HAFIZ ELECTRICALS
Price: 1500.0 INR
Availability: InStock

Price 1500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MITSUBISHI NF30-CS 15A 3 POLE MCCB Specification

Pole Type
3 Pole

Features
Compact size, high breaking capacity, reliable operation, easy installation

IP Rating
IP20

Installation Type
Panel Mount

Current
15A

Protection Level
Overload & Short-circuit protection

Connectivity Type
Wired

Phase
Three Phase

Switch Type
Manual reset

Mounting Type
Vertical or horizontal

Usage & Applications
Low voltage circuit protection in distribution/wiring systems

Frequency
50/60 Hz

Product Type
Molded Case Circuit Breaker (MCCB)

Operating Temperature
-5C to +40C

Working Temperature
-5C to +40C

Input
AC

Application
Industrial and commercial electrical circuit protection

Supply Voltage
AC 440V (maximum)

Accuracy
Standard IEC compliance

Dimension (L*W*H)
Approx. 130mm x 70mm x 60mm

Weight
Approx. 0.6 kg

Terminal Type
Screw terminal

Model Number
NF30-CS

Color
Grey/Black

Breaking Capacity
18 kA (AC 415V)

RoHS Compliance
Yes

Interrupting Capacity
18 kA (at 415V AC)

Tripping Mechanism
Thermal-magnetic

MITSUBISHI NF30-CS 15A 3 POLE MCCB About

Introducing the new MITSUBISHI NF30-CS 15A 3 POLE MCCB-engineered for peerless protection and resplendent reliability in low voltage circuit applications. With an ineffable blend of compact size and high breaking capacity (18kA at 415V AC), this MCCB is crafted for both industrial and commercial electrical safety. Its thermal-magnetic tripping mechanism, screw terminals, and easy panel mount installation offer unmatched convenience. Order now to grab yours and elevate your circuit protection standards with this RoHS compliant, IEC certified masterpiece!

Versatile Application and Robust Features

The MITSUBISHI NF30-CS 15A 3 Pole MCCB is expertly designed for panel mount installation, making it ideally suited for safeguarding electrical circuits in distribution and wiring systems. Crafted from high-quality, durable materials, it incorporates a thermal-magnetic tripping mechanism for both overload and short-circuit protection. With its manual reset capability and wired connectivity, this MCCB ensures reliable and secure operation, perfect for varied industrial and commercial use cases.

Sample Options, Premium Payment Terms & Domestic Market Reach

Premium quality ensures the MITSUBISHI NF30-CS 15A 3 Pole MCCB appeals to both the domestic and export markets. Sample units are available for evaluation, supporting seamless integration into your system. The main domestic market is well-supported with flexible payment terms for ease of procurement. Exporters, suppliers, and traders benefit from its versatile application method and industry-standard features for advanced protection, making it a preferred choice for discerning clients.

FAQ's of MITSUBISHI NF30-CS 15A 3 POLE MCCB:

Q: How does the thermal-magnetic tripping mechanism work in the NF30-CS MCCB?

A: The thermal-magnetic tripping mechanism combines thermal and magnetic elements to detect both overloads (prolonged overcurrents) and short circuits (sudden surges), providing responsive and reliable circuit protection.

Q: What is the main application of the MITSUBISHI NF30-CS 15A 3 Pole MCCB?

A: This MCCB is primarily used for low voltage circuit protection in industrial and commercial electrical distribution and wiring systems, offering effective overload and short-circuit protection.

Q: Where can I install the NF30-CS MCCB, and what mounting options are available?

A: The NF30-CS MCCB is designed for panel mounting, suitable for both vertical and horizontal installation in distribution boards or control panels.

Q: What is the process for ordering and receiving a sample of the NF30-CS MCCB?

A: You can request a sample when placing an order. Contact your supplier or trader, and samples will be arranged as per availability and shipping terms.

Q: What are the key benefits of using a RoHS compliant and IEC certified MCCB like this one?

A: Using a RoHS compliant and IEC certified MCCB ensures environmental safety, adheres to global electrical standards, and delivers reliable, high-performance protection for your electrical systems.

Q: How does this MCCB support both domestic and export markets?

A: Its premium quality, robust features, and flexible payment terms make it attractive for both domestic customers and international export markets, offering peace of mind for a wide customer base.
